Kioti
ID # 37659760

Kioti NX4510

Call for Price
Overview

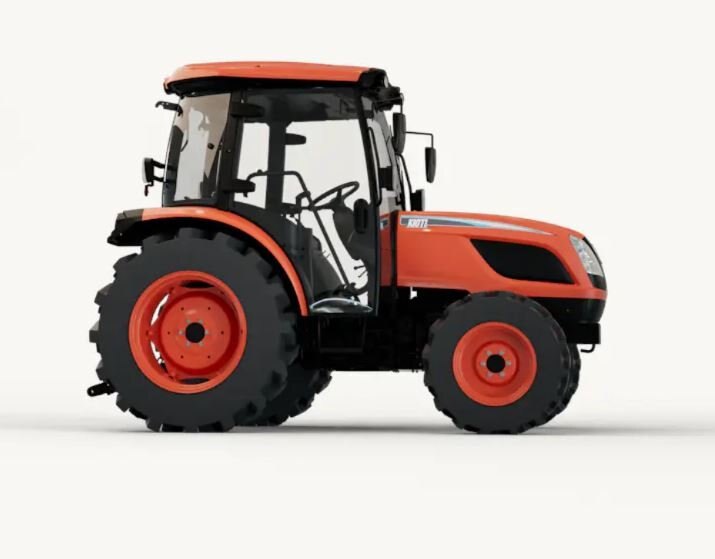

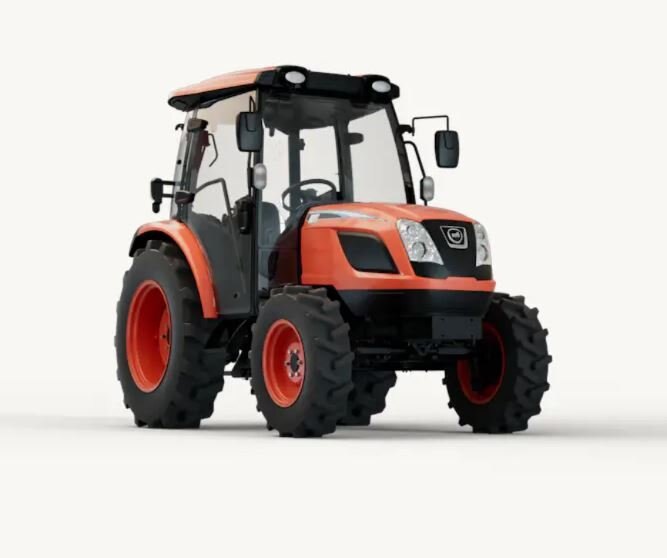

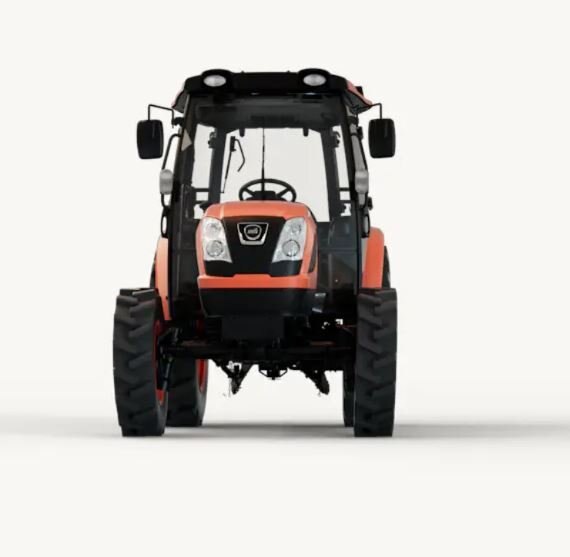

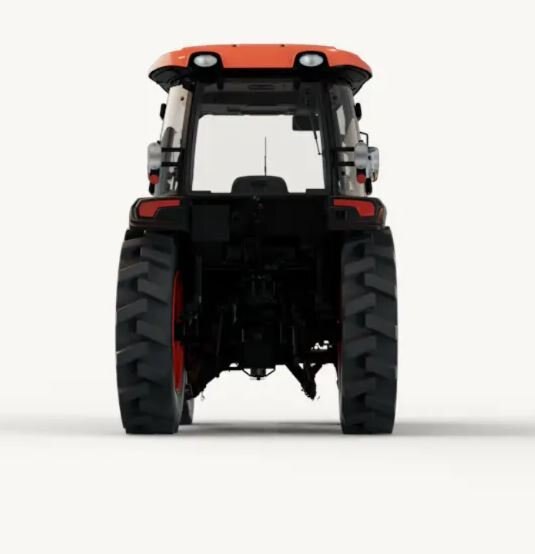

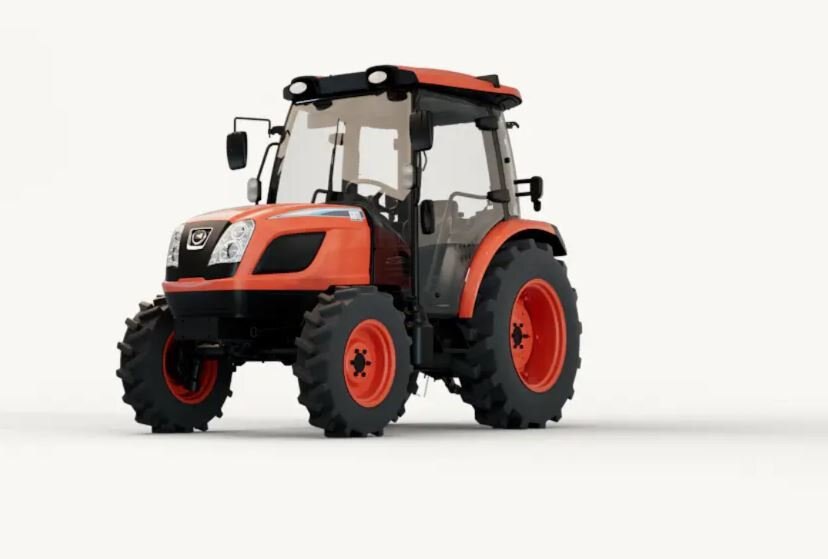

The KIOTI NX4510 is a compact utility tractor with 45-horsepower, ideal for property owners needing a powerful machine for mowing, landscaping, and other chores. Learn more about the KIOTI NX4510 tractor.
Specifications
Model
NX Series
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Kioti
nx features

Eco-Friendly Diesel Engine

The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Silence and strength go hand-in-hand, letting you conquer every task with quiet confidence.

Projection and Working Lamp

 With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.

Hydrostatic Power Steering

 Hydrostatic power steering makes even the tightest, most repetitive turns a breeze. And for peak comfort, you can tilt the steering wheel to your perfect position with a simple push of a lever.

PTO Cruise

 Engage it with a tap, and your engine locks into a steady RPM, guaranteeing precise and efficient implement operation. Simply click the switch to adjust PTO speed on the fly—all without ever shifting gears or wrestling with the throttle.

Torque Compensation

 This feature acts like a master engineer, automatically adjusting the engine torque level to maintain a steady, unwavering flow of power.

Anti-Stall Function (HST Models Only)

 The Anti-Stall function seamlessly intervenes to safeguard against sudden stalls and keep your momentum going strong. For delicate tasks requiring extra control, set a maximum speed limit for safe and precise control.



engine
RPM
2,600 rpm
Model
3F183T
Power
45 hp (33.60 kW)
Fuel Type
Diesel
Aspiration
Turbo Charged?
Displacement
111.40 cu. in. (1,826 cc)
Fuel Capacity
14.80 gal (56 L)
Engine Manufacturer
KIOTI
transmission
Shuttle
Synchronized
Main Gear
Synchronized
Transmission
Manual: Synchro Shuttle
Travel Speeds Forward
24
Travel Speeds Reverse
24
Travel Speeds Maximum Speed
15.71 mph (25.28 km/h)
Travel Speeds Minimum Speed
0.11 mph (0.17 km/h)
Travel Speeds Max Reverse Speed
13.96 mph (22.46 km/h)
Travel Speeds Min Reverse Speed
0.09 mph (0.15 km/h)
hydraulics
Pump
Gear
Lift Capacity
3,177 lb (1,441 kg)
Pump Capacity
16.50 gpm (62.40 lpm)
pto 4
PTO Type
Independent
Mid Speed
2,000 (optional)
PTO Power
37.60 hp (28 kW)
Rear Speed
540
drive train3
Brakes
Wet Multi Disc
Clutch
Dry Single Stage
Steering
Hydrostatic Power Steering
hitch 4
Type
Three Point
Category
Category 1
Control Type
Position with Draft Control
Lift Capacity
3,177 lb (1,441 kg)
dimensions 8
Width
65.60 in (1,665 mm)
Height
103.10 in (2,618 mm)
Weight
3,978 lb (1,804.40 kg)
Wheelbase
75.60 in (1,920 mm)
Rear Tread
52.10 in (1,324 mm)
Front Tread
55.20 in (1,352 mm)
Turning Radius
9.81 ft (2.99 m)
Ground Clearance
13.70 in (350 mm)
Length With Hitch
139.60 in (3,547 mm)
